Device with automatic frequency scan for max. measuring performance with a wide range of outputs
Applications
The sensors are perfectly suited for the non-contact measurement of pure or slightly contaminated liquids, regardless of the pressure or electrical conductivity.
- Suitable for pipe diameters from DN 15 to 4000 (½ to 160″)
- Suitable for fluid temperatures ranging from –40 to +170 °C (–40 to +338 °F)
- Can be used with all metal and plastic pipes lined or unlined and with composite pipes
Ideal solution for applications with chemicals, solvents, liquid hydrocarbons, acids and alkalis
- Particularly suitable for corrosive, hazardous or ultrapure fluids thanks to non-contact measurement concept
- Interface for easy integration into all common distributed control systems:
– HART
– PROFIBUS DP/PA
– FOUNDATION Fieldbus
• Approval for use in hazardous area Zone 1
(ATEX, FM, CSA) available as standard
Features and benefits

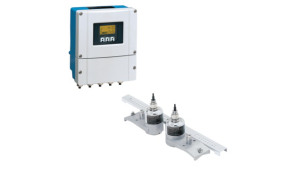

The Prosonic Flow ultrasonic clamp-on system allows accurate and cost-effective flow measurement from outside the pipe and without the need to interrupt the process. The flow measurement is bidirectional and causes no pressure loss.
- Easy, safe and menu-guided sensor mounting ensures precise measuring results
- Long-term system integrity thanks to robust sensor and industrial mounting kit design
- Automatic frequency scan for optimized installation and maximum measuring performance
- Remote configuration using Endress+Hauser’s FieldCare software
For more information please contact DMS on 01773 534555 / meters@dmsltd.com / http://www.dmsltd.com
